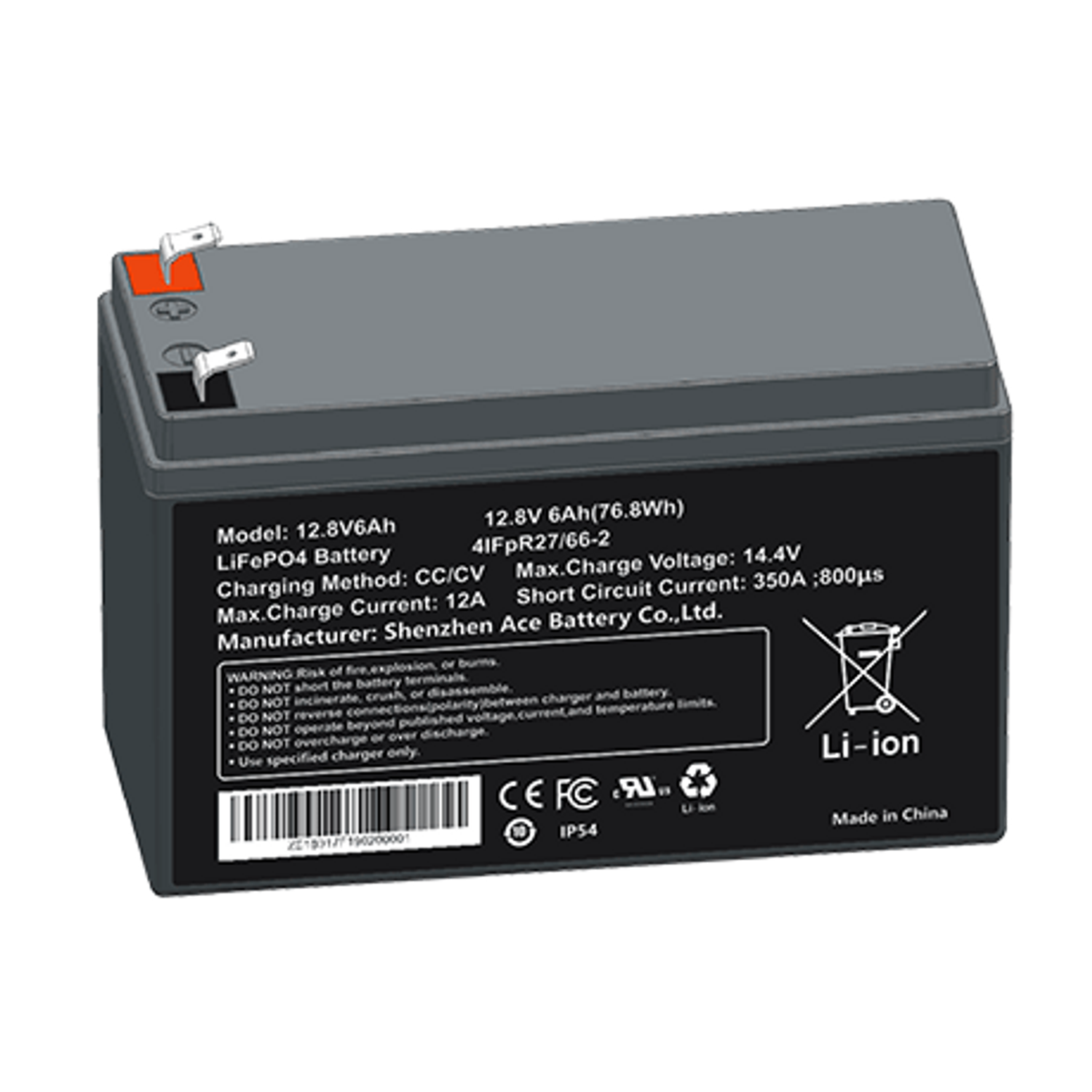

12.8V Server Rack Battery | Ups Lithium-ion Battery

At ACE Battery, we are proud to present our cutting-edge 12.8V Server Rack Battery, a reliable and versatile solution for your UPS requirements. With applications ranging from tower-mounted UPS to rack-mounted UPS, special UPS, and special EPS, this rack mount UPS battery backup is designed to meet your customers' needs in various power backup scenarios. Whether it's for small businesses seeking a UPS for small business applications or simple systems requiring up to 3.0 kWh, our 12.8V lithium-ion battery is the perfect fit.

Features

Long-lasting run time	Safe LiFePO4 Battery technology	High-rate discharge performance	Full BMS protection function
Independent control and protection for charge and discharge processes	Real-time detection for the voltage, current, temperature, SOH, and SOC	Directional explosion-proof value design

Support up to 4S10P connection without external BMS
Tower-mounted UPS
Rack-mounted UPS
Special UPS
Special EPS
Simple systems up to 3.0 kWh

Up to four PACKs in series (The battery pack pressure difference is less than 0.1V)
Up to ten PACKs in parallel (The battery pack pressure difference is less than 0.1V)

Enables 12.8V, 25.6V,38.4V and 51.2V systems

Key Parameters Item	12.8V 6AH	12.8V 8AH
Cell Material	LFP26650	LFP26650
Cell Specifications	3.2V/3Ah (4S2P)	3.2V/4Ah (4S2P)
Normal Voltage [V]	12.8	12.8
Max. Constant Discharge Current [A]	45	24
Max. Discharge Current [A]	75	75
Max. Charge Current [A]	6	8
Rated Capacity [Ah] (25°C, 1C）	6	8
Max. Number of Packs (In Series)	4	4
Weight [kg]	1.1	1.2
Max. Number of Packs (In Parallel)	10
Dimensions [WDH, mm]	1516593
Operating Temperature [°C]	Discharge: -20 to +60 Charge: 0 to 45
Storage Temperature [°C]	0 to 40
Terminal	F2
Voltage Range [V]	10 to 14.4
Float Charge Voltage [V]	13.8
Certification	UL1642, UL1973, IEC62619, UN38.3, FCC, EMC, ROHS, ICES-003

Product Description

At ACE Battery, we are proud to present our cutting-edge 12.8V Server Rack Battery, a reliable and versatile solution for your UPS requirements. With applications ranging from tower-mounted UPS to rack-mounted UPS, special UPS, and special EPS, this rack mount UPS battery backup is designed to meet your customers' needs in various power backup scenarios. Whether it's for small businesses seeking a UPS for small business applications or simple systems requiring up to 3.0 kWh, our 12.8V lithium-ion battery is the perfect fit.

Features

Long-lasting run time	Safe LiFePO4 Battery technology	High-rate discharge performance	Full BMS protection function
Independent control and protection for charge and discharge processes	Real-time detection for the voltage, current, temperature, SOH, and SOC	Directional explosion-proof value design

Product Applications

Support up to 4S10P connection without external BMS
Tower-mounted UPS
Rack-mounted UPS
Special UPS
Special EPS
Simple systems up to 3.0 kWh

Up to four PACKs in series (The battery pack pressure difference is less than 0.1V)
Up to ten PACKs in parallel (The battery pack pressure difference is less than 0.1V)

Enables 12.8V, 25.6V,38.4V and 51.2V systems

Product Technology

Product Performance Curve

Product Specification

Key Parameters Item	12.8V 6AH	12.8V 8AH
Cell Material	LFP26650	LFP26650
Cell Specifications	3.2V/3Ah (4S2P)	3.2V/4Ah (4S2P)
Normal Voltage [V]	12.8	12.8
Max. Constant Discharge Current [A]	45	24
Max. Discharge Current [A]	75	75
Max. Charge Current [A]	6	8
Rated Capacity [Ah] (25°C, 1C）	6	8
Max. Number of Packs (In Series)	4	4
Weight [kg]	1.1	1.2
Max. Number of Packs (In Parallel)	10
Dimensions [WDH, mm]	1516593
Operating Temperature [°C]	Discharge: -20 to +60 Charge: 0 to 45
Storage Temperature [°C]	0 to 40
Terminal	F2
Voltage Range [V]	10 to 14.4
Float Charge Voltage [V]	13.8
Certification	UL1642, UL1973, IEC62619, UN38.3, FCC, EMC, ROHS, ICES-003

Lithium-ion UPS 12.8V Battery Solutions

Connections and Flexibility

Our 12.8V Server Rack Battery delivers unparalleled performance, supporting up to 4S10P connection without external BMS. The battery allows up to four packs in series and up to ten packs in parallel, with a minimal pressure difference of less than 0.1V between battery packs. It empowers 12.8V, 25.6V, 38.4V, and 51.2V systems, ensuring adaptability across a wide range of applications.

Unwavering Reliability

Constructed with LFP26650 cell material and available in 6Ah and 8Ah options, our 12.8V lifepo4 battery boasts impressive specifications. The normal voltage of 12.8V, along with a maximum constant discharge current of up to 45A, ensures seamless performance during power interruptions. With certifications like UL1642, UL1973, IEC62619, UN38.3, FCC, EMC, ROHS, and ICES-003, rest assured of its compliance with industry standards.

Compact Design and Functionality

The 12.8V Server Rack Battery features a compact form factor, weighing only 1.1kg to 1.2kg, making it ideal for space-conscious setups. Its operating temperature ranges from -20°C to +60°C during discharge and 0°C to 45°C during charging. With a voltage range of 10V to 14.4V and a float charge voltage of 13.8V, it ensures precise power delivery and charging for your critical systems.
